Proxy Squid Install

Summary

This guide provides a baseline setup for Squid proxy server. It covers system updates, installing Squid with essential networking tools, configuring a minimal proxy setup that allows local network access.

1️⃣ First steps after installation (baseline)

After installing Linux Server and logging in:

sudo dnf update
sudo dnf upgrade -y

Install basic tools (very helpful later):

sudo dnf install -y \
  squid \
  tcpdump \
  net-tools \
  iproute \
  curl \
  ca-certificates

Enable and start Squid:

sudo systemctl enable squid
sudo systemctl start squid

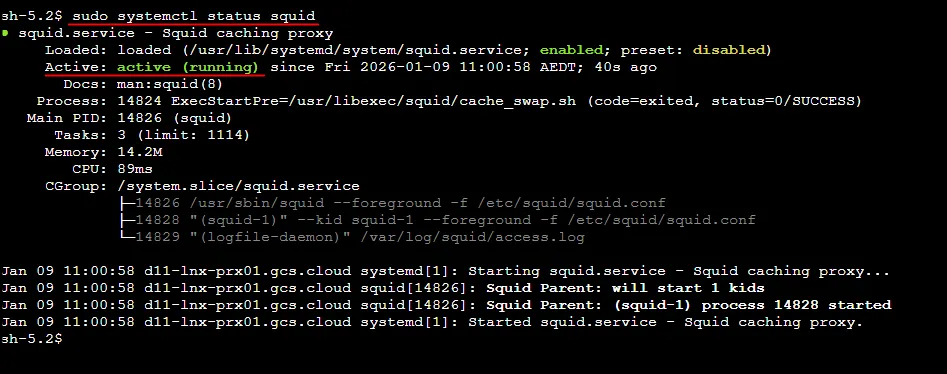

systemctl status squid

You should see active (running)

2️⃣ Baseline Squid config

Backup the original config

sudo cp /etc/squid/squid.conf /etc/squid/squid.conf.bak

Edit the config:

sudo vi /etc/squid/squid.conf

For now, use a minimal, clean baseline (this avoids surprises):

############################################
# Basic Squid proxy (baseline)
############################################

http_port 3128

# Allow your test network (adjust subnet)
acl localnet src 10.10.0.0/16  # <--- REPLAE WITH YOUR CIDR RANGE
http_access allow localnet
http_access deny all

# Logging
access_log /var/log/squid/access.log

# Conservative defaults
client_idle_pconn_timeout 5 minutes
request_timeout 5 minutes
read_timeout 5 minutes

Restart and verify:

sudo squid -k parse
sudo systemctl restart squid

3️⃣ VMware networking check (important)

Connection test

Quick proxy test from Windows:

curl-x http://<ubuntu-ip>:3128 https://www.google.com-v

Confirm Squid sees traffic

On the proxy server:

sudo tail -f /var/log/squid/access.log

Block direct HTTPS connection on the machine

This command forces the PC to use the proxy server to access any web pages.

# Admin PowerShell
New-NetFirewallRule `
-DisplayName"Block Direct HTTPS" `
-Direction Outbound `
-Protocol TCP `
-RemotePort443 `
-Action Block
