Entra ID and Cognito - OIDC

August 11, 2025

Overview

This guide walks through setting up Microsoft Entra ID (formerly Azure AD) as an OpenID Connect (OIDC) identity provider for AWS Cognito User Pools. This integration allows users to sign in to your applications using their Microsoft credentials.

Steps

1. Sign in to Azure Portal

Navigate to https://portal.azure.com and access Microsoft Entra ID (formerly “Azure AD”) from the main services menu.

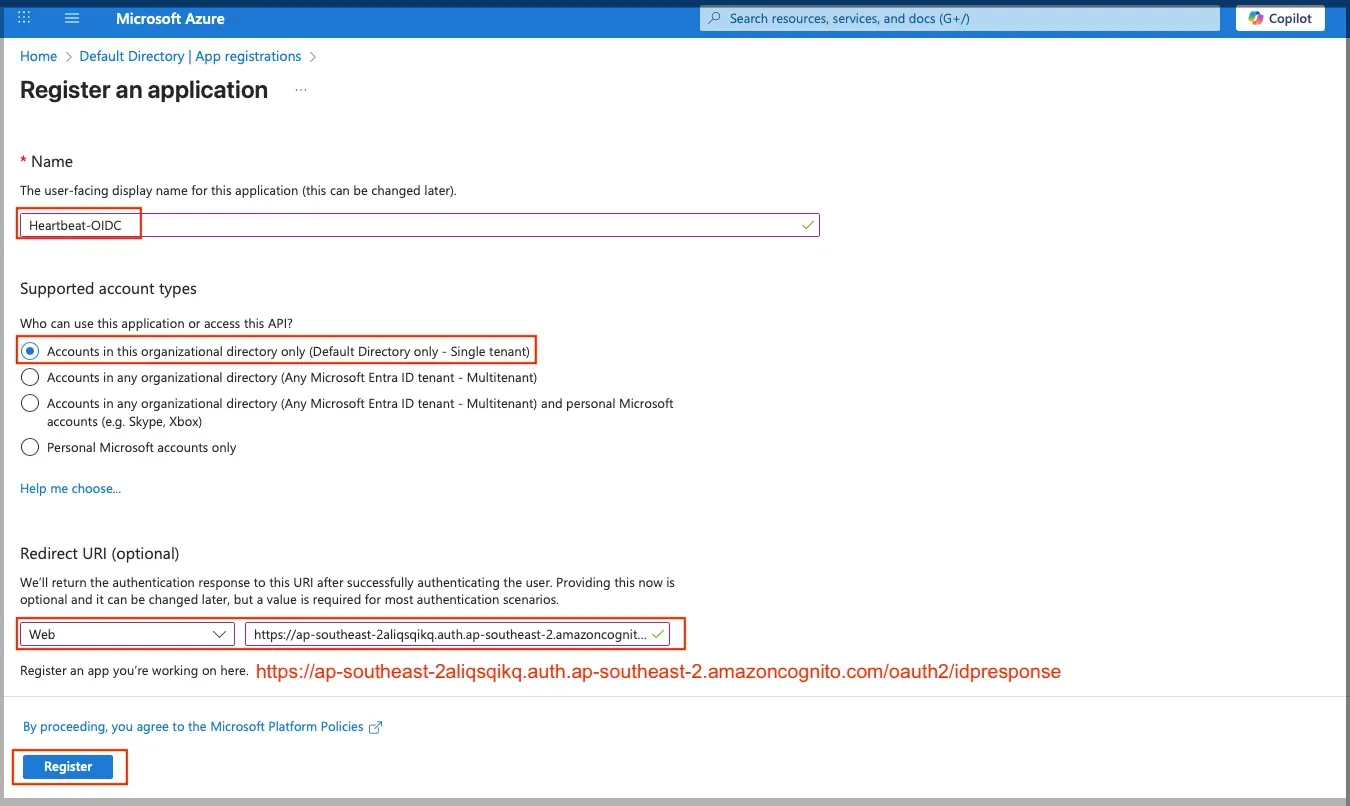

2. Register a New Application

  1. In Microsoft Entra ID, select App registrations → New registration.

  1. Configure the following settings:

    • Name: Choose a descriptive name like CognitoOIDC

    • Supported account types: Select based on your requirements:

      • For internal use: Accounts in this organizational directory only
      • For broader access: Accounts in any organisational directory and personal Microsoft accounts

    • Redirect URI:

      • Platform: Web
      • URI: https://<your-cognito-domain>/oauth2/idpresponse

      Example: https://myapp.auth.ap-southeast-2.amazoncognito.com/oauth2/idpresponse

  2. Click Register to create the application.

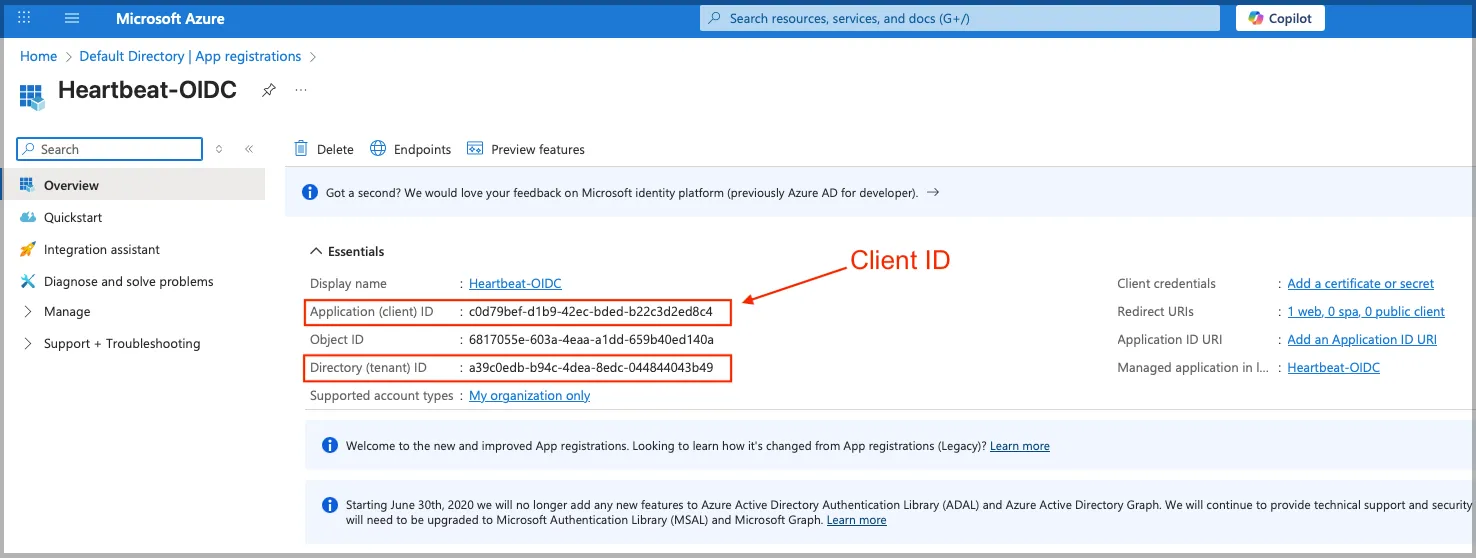

3. Collect OIDC Metadata

After registration, from your new app’s Overview page, note these important values:

  • Application (client) ID - This becomes your client_id for Cognito
  • Directory (tenant) ID - Required for constructing the issuer URL
  • OIDC Metadata URL: https://login.microsoftonline.com/&lt;tenant-id&gt;/v2.0/.well-known/openid-configuration

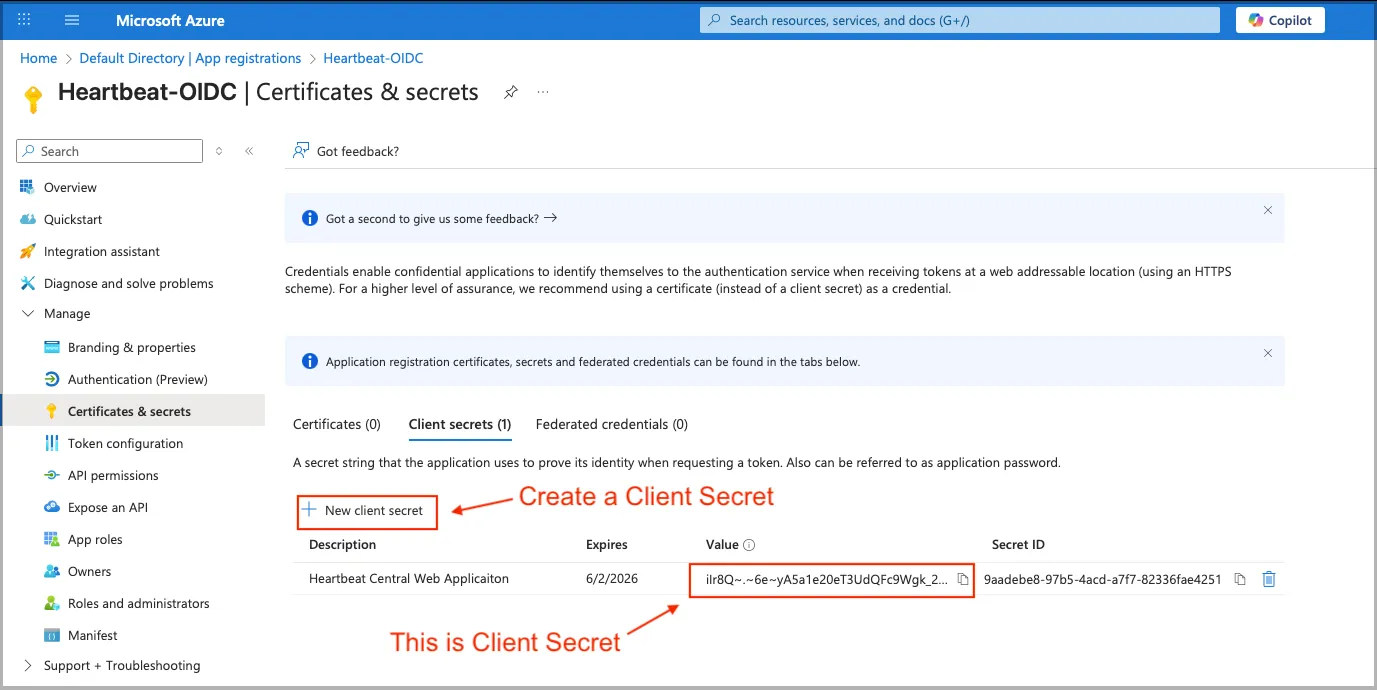

4. Create a Client Secret

  1. Navigate to Certificates & secrets → New client secret
  2. Add a meaningful description and select an appropriate expiration period
  3. Click Add and immediately copy the generated Value - this is your client_secret

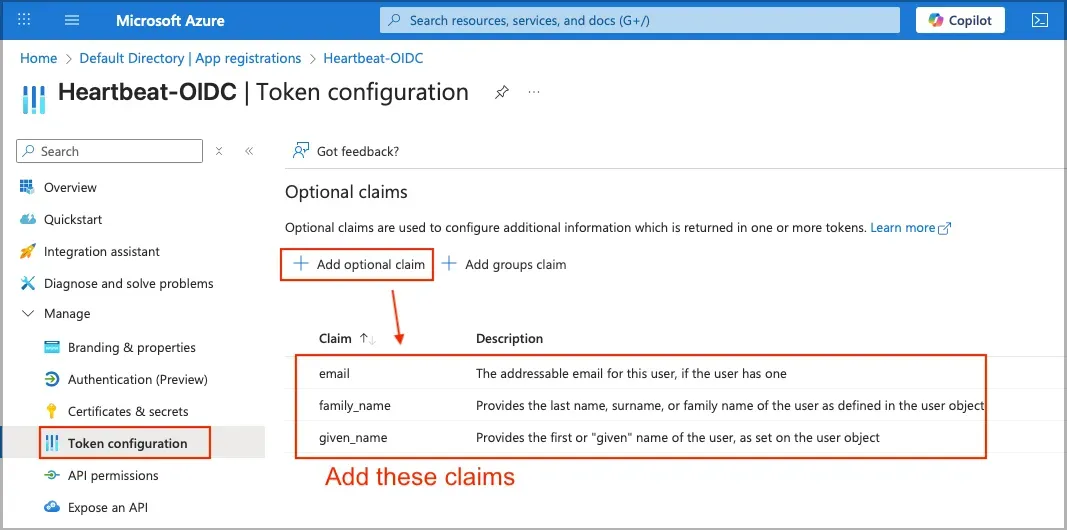

5. Configure Token Generation

  1. In your user pool, go to App integration → Hosted UI
  2. Under ID token, enable the attributes (email, family_name, given_name)
  3. Click Save changes

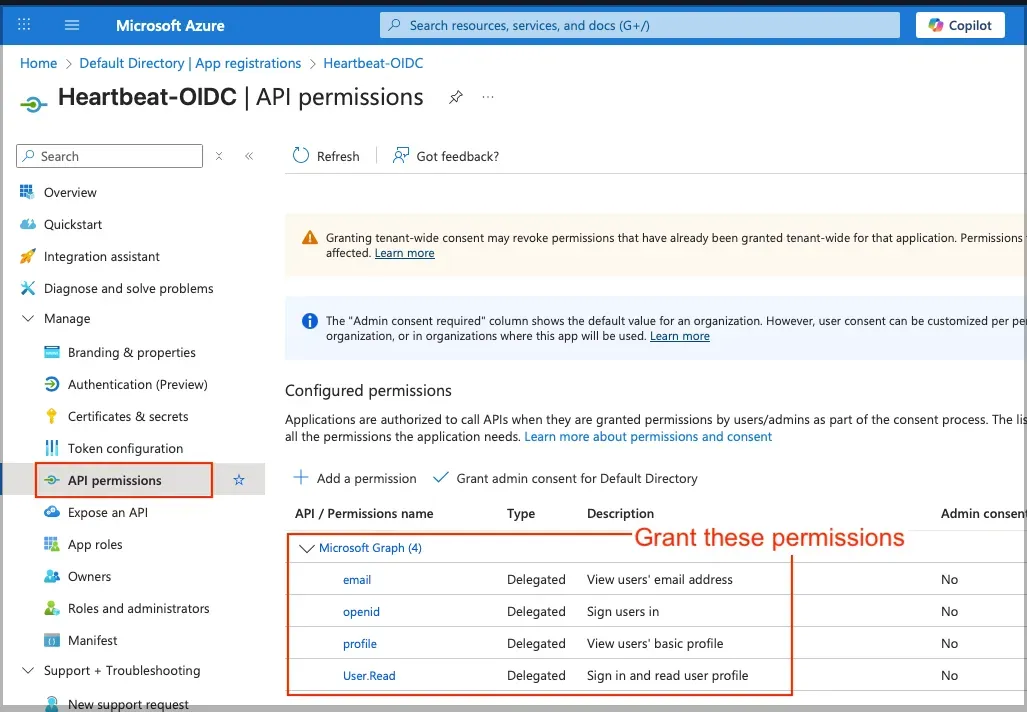

6. Configure API Permissions

To ensure proper user attribute access:

  1. Go to API permissions → Add a permission → Microsoft Graph
  2. Add these permissions (email, family_name, given_name)
  3. Click Add permissions and then Grant admin consent

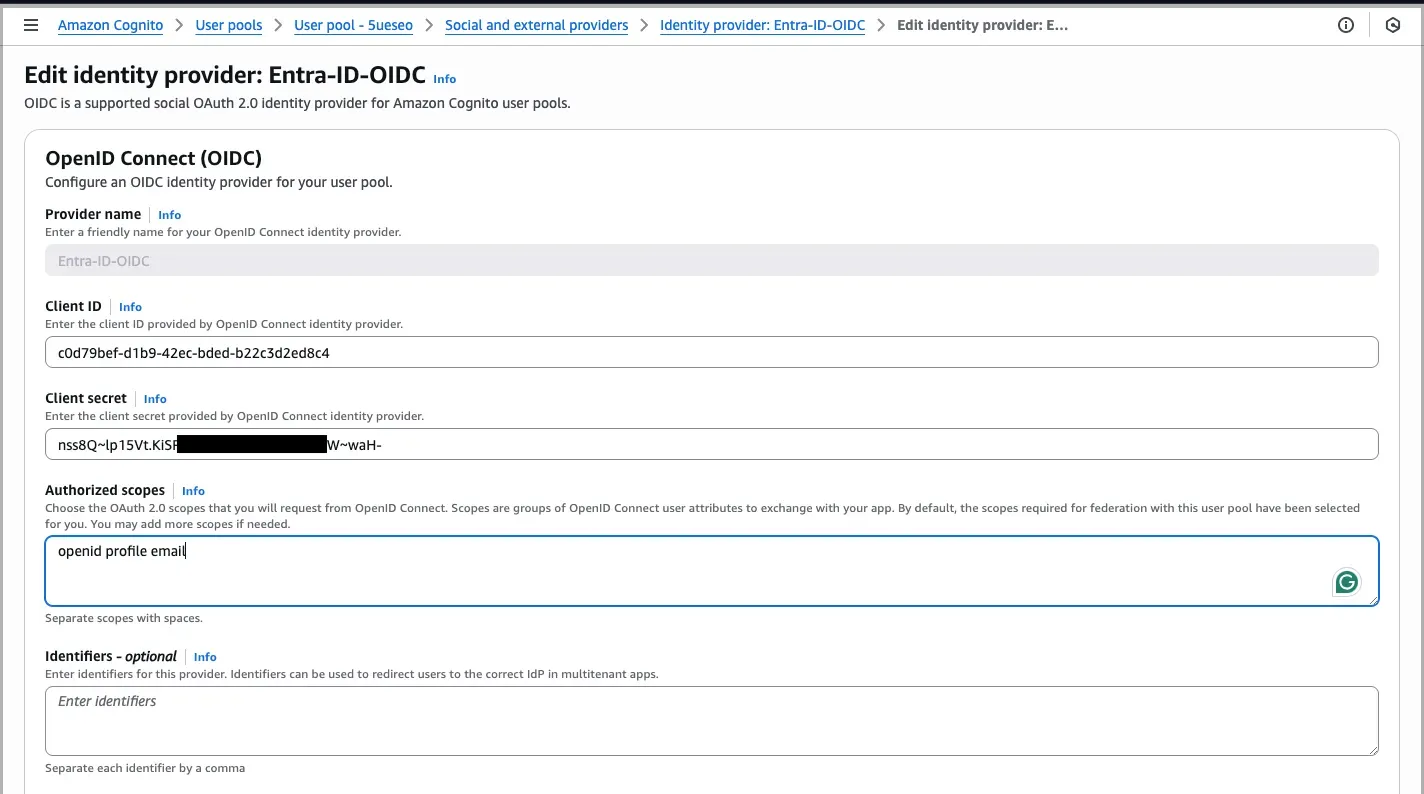

7. Add OIDC Provider in Cognito

In the AWS Console:

  1. Navigate to Cognito → User Pools → select your user pool

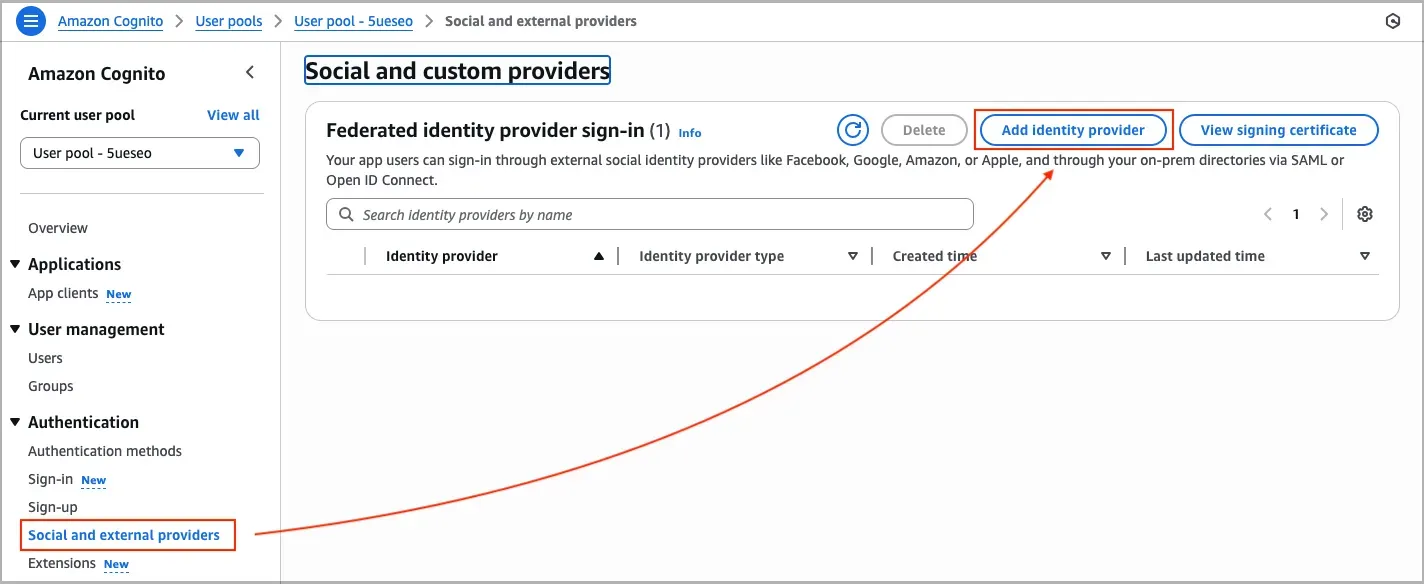

  2. Go to Identity providers → Add identity provider → OpenID Connect

  1. Configure the provider:
    • Provider name: entra (use a simple name without spaces)
    • Client ID: Paste the Application (client) ID from Entra ID
    • Client secret: Paste the secret value you created earlier
    • Authorize scopes: openid profile email

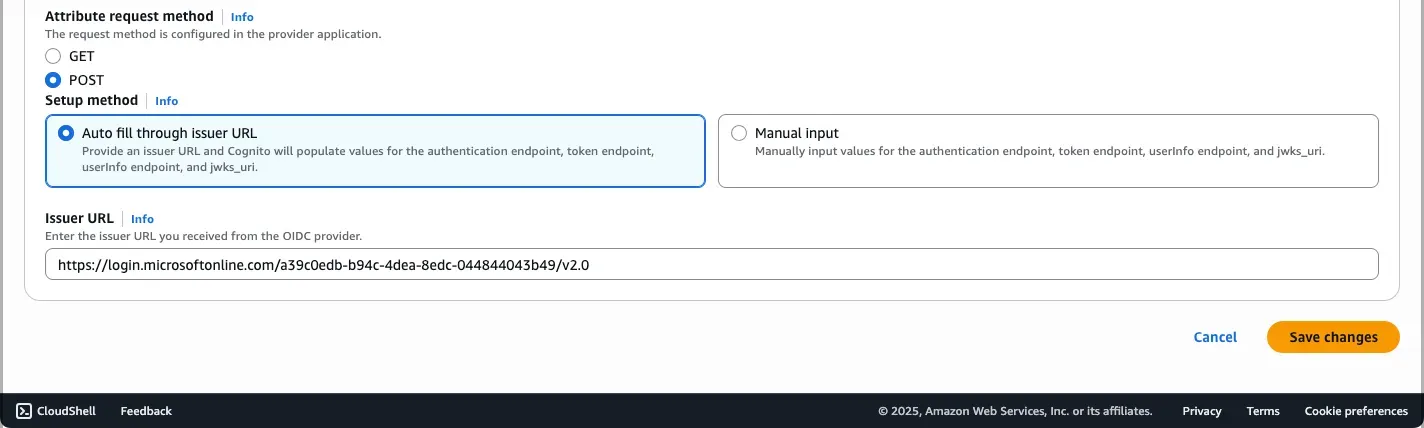

    • Attributes request method: Select POST (recommended)
    • Issuer URL: https://login.microsoftonline.com/<tenant-id>/v2.0

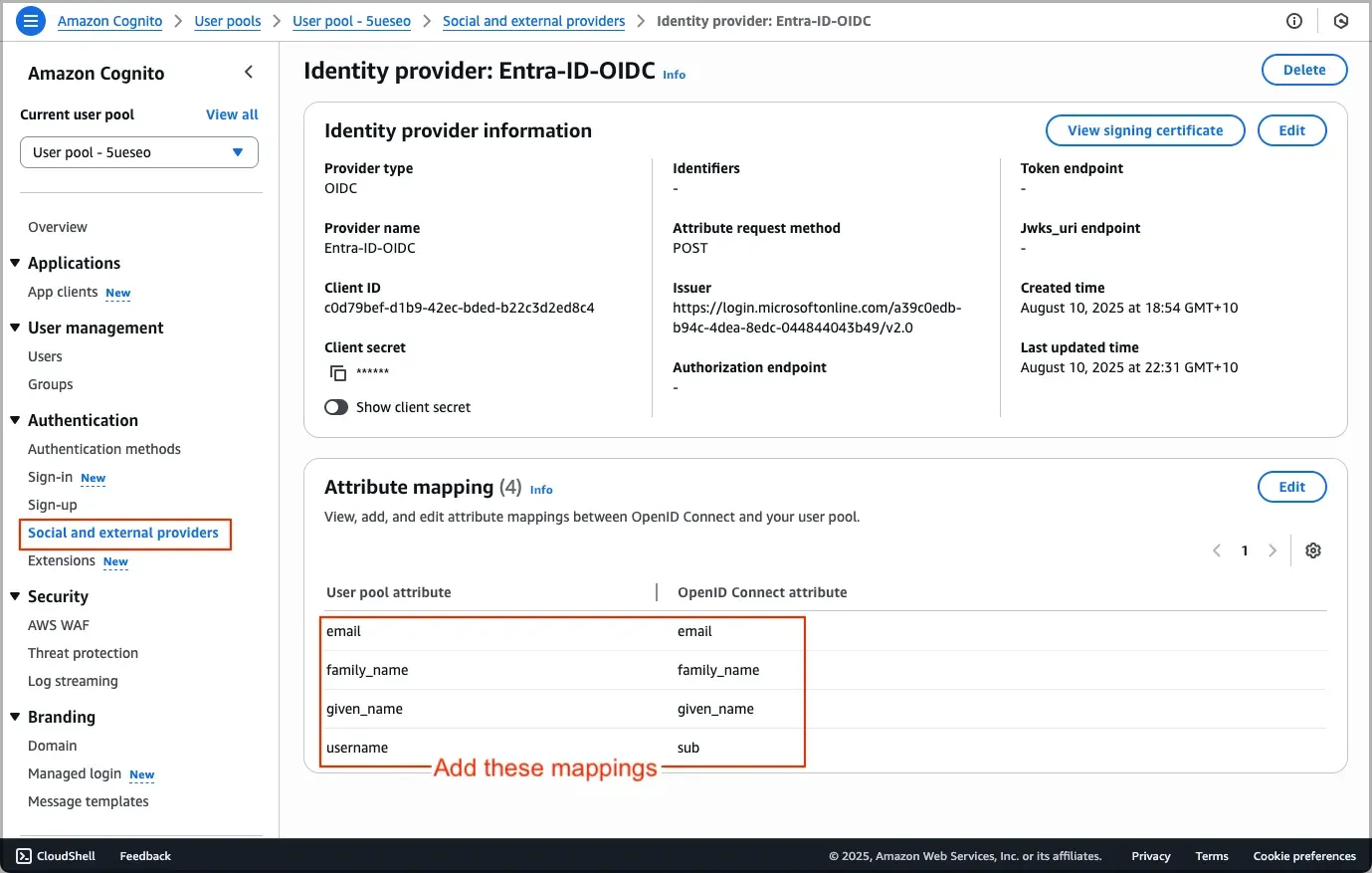

8. Configure Attribute Mapping

In the same identity provider settings:

  1. Under Attribute mapping, map these important attributes:
    • email → email
    • family_name → family_name
    • given_name → given_name
  2. Click Save changes

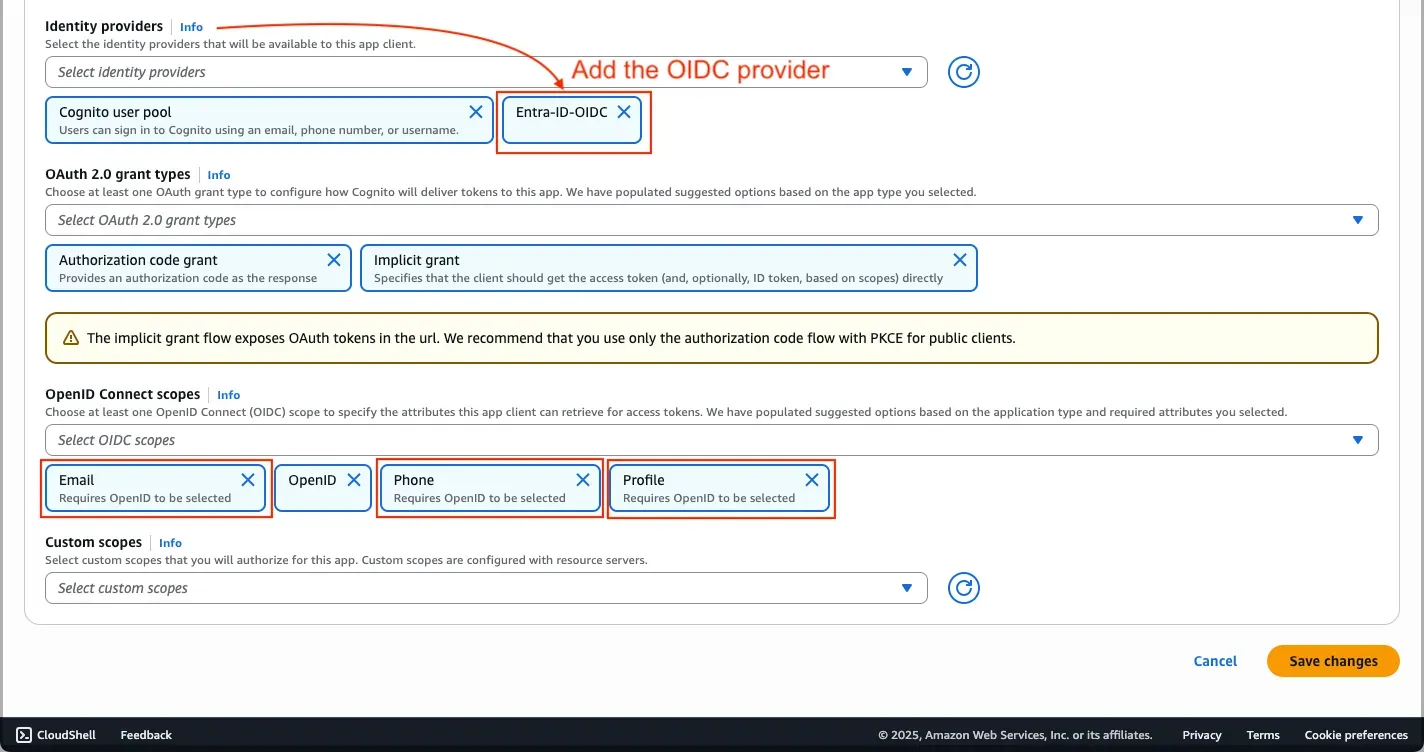

9. Enable Provider for Your App Client

  1. Go to App integration → App clients → select your app client
  2. Under Hosted UI settings:
    • Ensure your app client has appropriate Callback URLs configured
    • Under Identity providers, enable OpenID Connect (entra)
    • Verify OAuth 2.0 grant types includes Authorization code grant
    • Set OpenID Connect scopes to include openid, profile, email
  3. Click Save changes

10. Test the Integration

Test your integration by accessing:

https://<your-cognito-domain>/login?response_type=code&client_id=<cognito-app-client-id>&redirect_uri=<your-redirect-uri>
